Product Usage Instructions

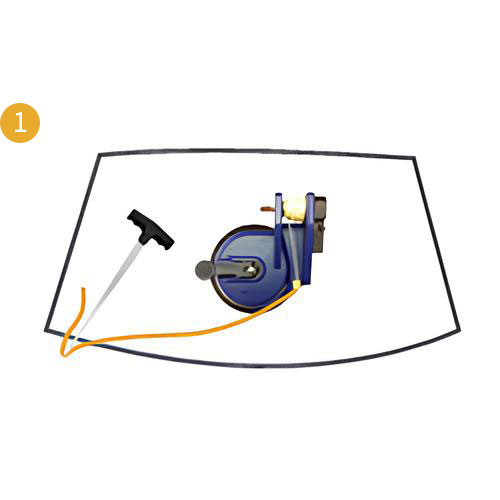

Use the threading tool to thread the line from inside to outside.

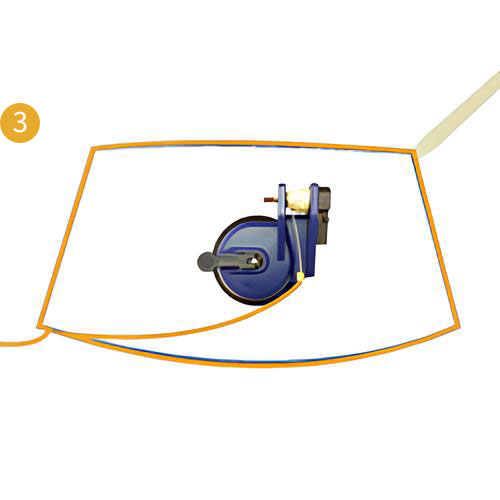

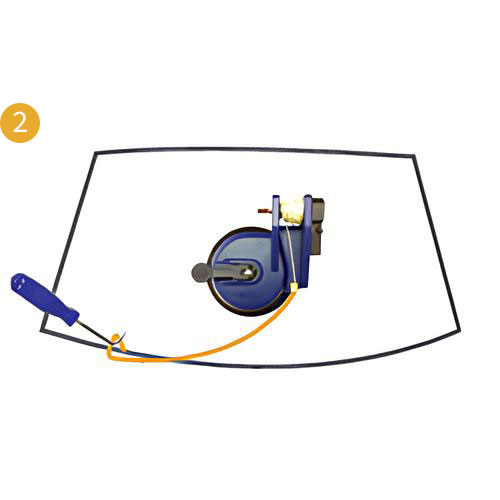

Use the hook tool to pull the cutting line.

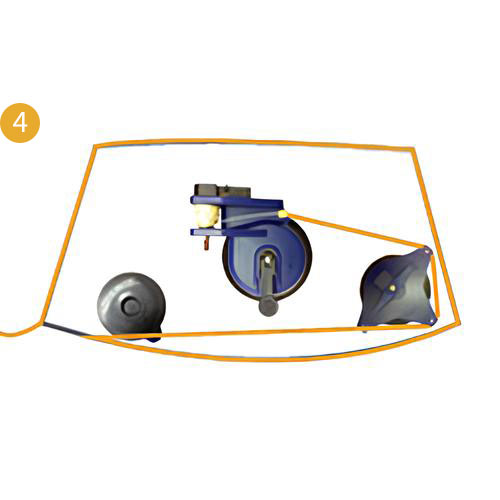

Guide it to the edge of the glasses and secure it on the outside.

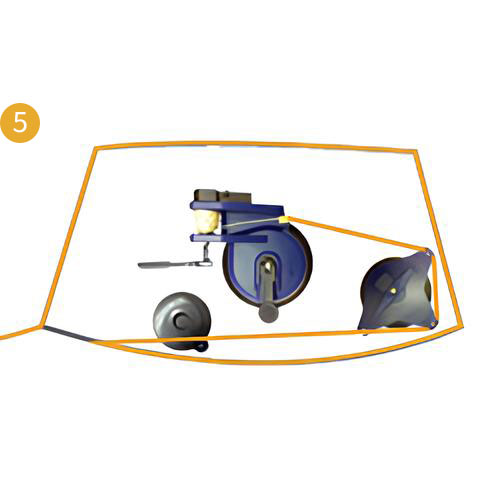

Place the cutting line pulley between the cutting line reel and the cutting line to form a cutting angle.

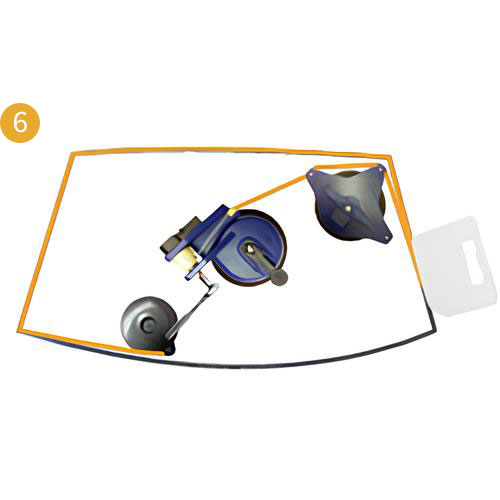

Connect the included sleeve to the ratchet wrench*, then start winding the cutting line reel to cut the polyurethane.

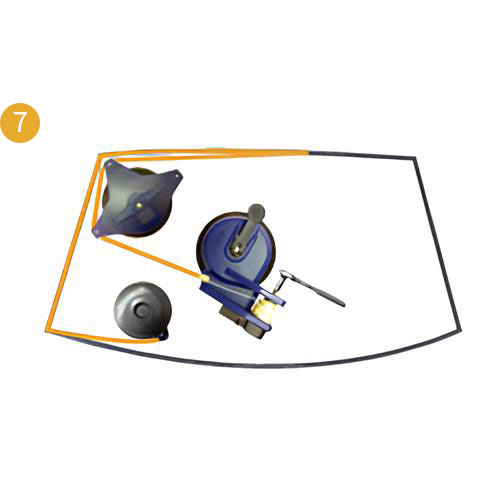

Relocate the cutting line reel and the cutting line pulley when moving.

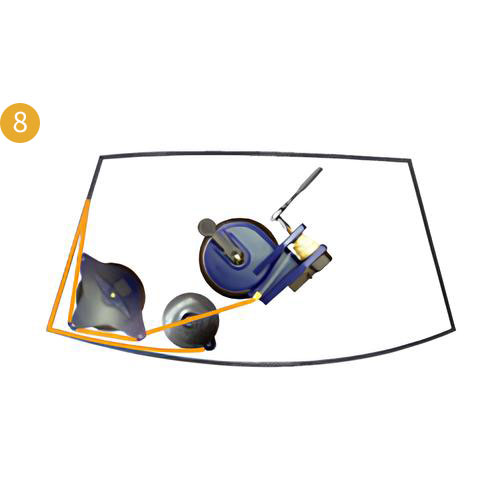

(The protective table can press the line to protect the dashboard)

Relocate the cutting line pulley

Relocate the cutting line pulley and complete the cut.

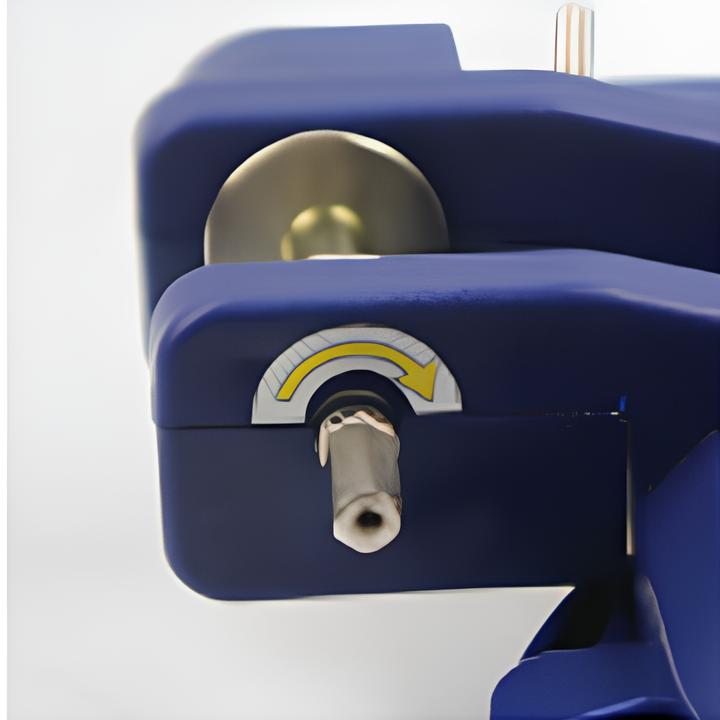

* The arrow direction indicates the correct direction for rewinding, tightening, and cutting glass.

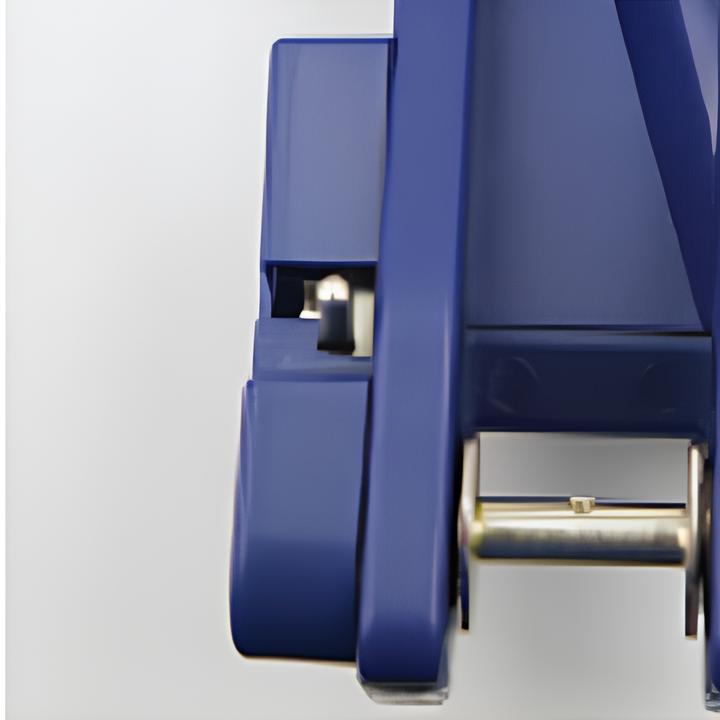

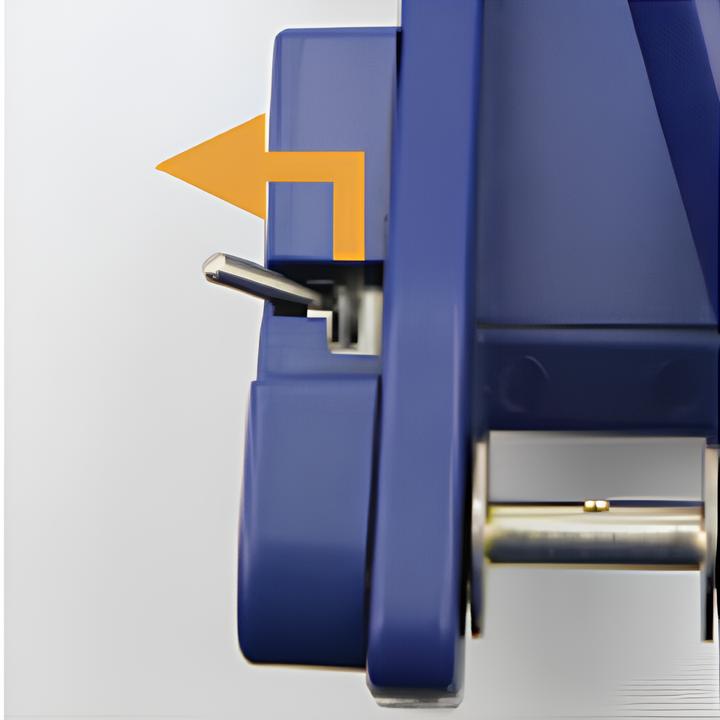

* Move the adjustment lever outward to loosen the gear, allowing the bearing to rotate in any direction. It is mainly designed for the initial threading. When cutting glass, the cutting line length can be adjusted to help move the suction cup.

* When the adjustable lever is parked inward, the gear is fixed for stepwise motion during glass cutting. Wrenches, electric, or pneumatic tools should rotate clockwise according to the sticker direction.

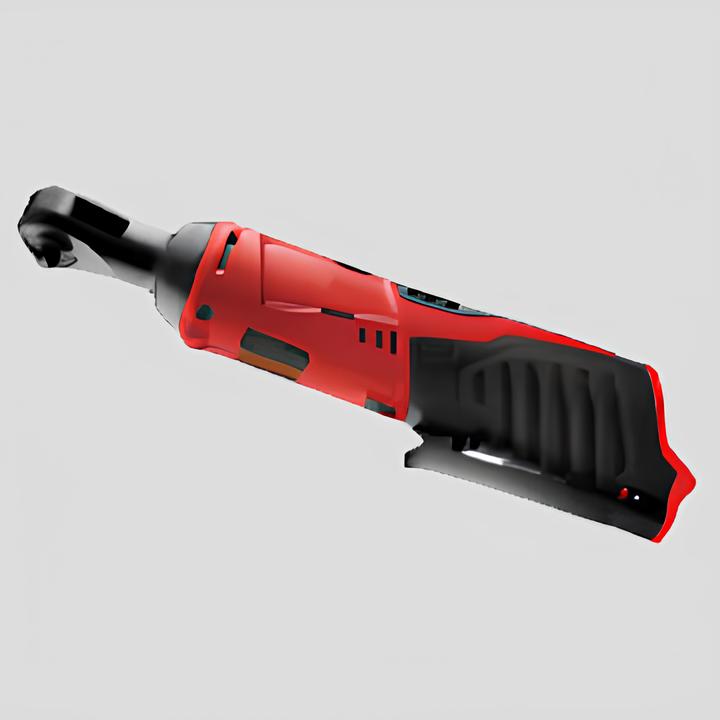

* A wireless/pneumatic ratchet wrench can replace the included ratchet wrench to save time.
